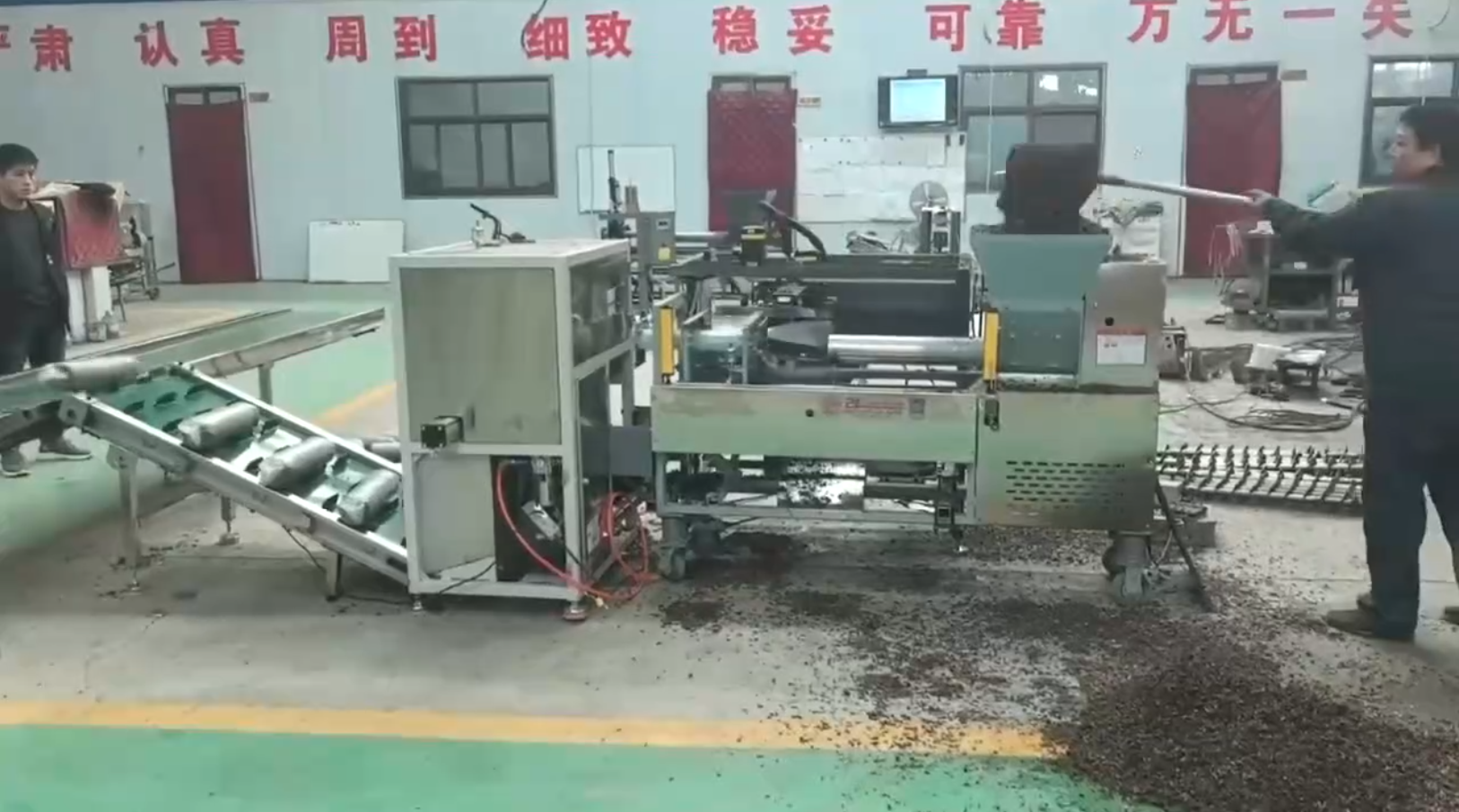

Automatic Mushroom Bag Ring Sealing, Capping & Tray Loading Machine
Model: CX-ZDTHJ | 1200-1400 pcs/h | CE Certified
Product Summary
This automatic machine integrates ring sealing, capping, and tray loading in one continuous process, designed for edible mushroom cultivation. It achieves a bagging capacity of 1200–1400 pieces per hour with high accuracy and reliability. The machine is constructed with carbon steel and SS304 for durability, and it is CE certified, ensuring compliance with European safety and EMC standards.
Key Features
- High Efficiency: Processes 1200-1400 bags per hour, boosting productivity.
- Precision Control: Bagging height accuracy ±10mm and repeat positioning accuracy ±2mm, ensuring consistent bag quality.
- Durable Construction: Made from carbon steel and SS304, offering long service life.
- Advanced System: Equipped with Xinje PLC, high-precision servo motor, HIWIN linear guides, TBI ball screws, and SICK sensors for reliable operation.
- CE Certified: Complies with Machinery Directive 2006/42/EC and EMC Directive 2014/30/EU (certificate number M.2026.206.C135928).
- Wide Applicability: Suitable for oyster mushroom, shiitake mushroom, black fungus, and pearl oyster mushroom bagging.
Technical Specifications
| Parameter | Value |
|---|
| Power | 12 kW |
| Input Voltage | AC380V 50Hz |
| Capacity | Max 1200–1400 pcs/h |
| Bagging Height Accuracy | ±10mm |
| Repeat Positioning Accuracy | ±2mm |
| Pass Rate | ≥97% |
| Air Pressure | 0.5–0.7MPa, 1500L/min |
| Overall Dimension | L3200 × W2130 × H2350mm (clear height ≥2800mm) |
| Net Weight | 1600KG |
| Protection | IP54 |
| Working Temperature | 0–40°C |
| Control System | Xinje high-speed motion axis PLC |
| Servo System | Xinje high-precision servo motor |
| Motion System | HIWIN linear guide + TBI ball screw + SMC cylinders |
| Detection System | SICK sensor |
Models and Options
Available model: CX-ZDTHJ. This model supports customization for different mushroom types and bag sizes. Please contact us for specific configuration options.
Materials and Structure
Main structure is made of carbon steel with SS304 contact parts to resist corrosion and ensure food-grade hygiene. The machine integrates the following systems:
- Control system: Xinje high-speed motion axis PLC
- Servo system: Xinje high-precision servo motor
- Motion system: HIWIN linear guide + TBI ball screw + SMC cylinders
- Detection system: SICK sensor
Applications
Ideal for edible mushroom cultivation, especially for bagging operations of oyster mushroom, shiitake mushroom, black fungus, and pearl oyster mushroom. Suitable for edible mushroom growing farms, planting bases, and agricultural processing lines.
Customization
We offer customization for different mushroom varieties, bag sizes, and specific production line requirements. Please provide your specifications for a tailored solution.
Case Study
Our machine has been exported to South Korea, Malaysia, Russia, and the UK, with an annual export volume of 20+ units. In a 5-year operation, it has demonstrated stable performance and high efficiency, achieving a bagging speed of over 1000 bags per hour in a mushroom substrate processing production line. Customers report high production efficiency and low labor cost.
FAQ
Q: What is the capacity of the machine?
A: The machine can process 1200-1400 pieces per hour, depending on bag size and material.
Q: What power supply is required?
A: It requires AC380V 50Hz three-phase power supply.
Q: What is the pass rate?
A: The pass rate is at least 97%, ensuring high-quality bagging.
Q: Is the machine CE certified?
A: Yes, it is CE certified (certificate number M.2026.206.C135928).
Q: What mushroom types can it handle?
A: It is suitable for oyster mushroom, shiitake mushroom, black fungus, and pearl oyster mushroom.
Q: What is the MOQ?
A: The MOQ is 1 unit.
Q: What are the payment terms?
A: We accept 30/70 payment terms.
Q: How is the machine delivered?
A: We offer FOB/CIF delivery methods, with pre-shipment testing.
