Product Summary
The MF-50 Electric Knife Wheel Branch and Cotton Shredder is designed for processing tree branches (≤φ30mm), cotton material, and wood into 3-5mm flake particles suitable for mushroom substrate. With a capacity of 2500kg/h and a 5.5kW electric motor, it is an efficient solution for mushroom farms and edible mushroom cultivation. The knife wheel design with fixed and moving blades and low clearance minimizes fiber tangling, ensuring continuous operation.
Key Features
- High capacity of 2500kg/h (2.5T/h) to support large-scale production.
- Knife wheel design with low blade clearance prevents fiber tangling, reducing downtime and maintenance costs.
- Powered by a 5.5kW electric motor with AC380V 50Hz input for consistent performance.
- Produces 3-5mm flake particles, ideal for mushroom substrate preparation.
- Compact overall dimensions (1300 × 620 × 700mm) and net weight of 190kg for easy installation.
- CE certified (Cert. No. M.2026.206.C135928).
Technical Specifications
| Model | MF-50 |
|---|
| Power | 5.5kW |
|---|
| Input Voltage | AC380V 50Hz |
|---|
| Capacity | 2500kg/h |
|---|
| Net Weight | 190KG |
|---|
| Overall Dimension | 1300 × 620 × 700mm |
|---|
| Suitable Materials | Tree branches (≤φ30mm), cotton material, wood |
|---|
| Particle Size | 3-5mm flake particles |
|---|
| Structure | Knife wheel design (fixed & moving blades with low clearance) |
|---|
| Drive Option | Electric motor (diesel engine optional) |
|---|
| Process Flow | Feeding → Chopping → Discharging |
|---|
Models and Options
The MF-50 is available with an electric motor as standard. For areas without stable power, a diesel engine option is available upon request.
Materials and Structure
Constructed from carbon steel and wear-resistant alloy steel for durability. The knife wheel design incorporates fixed and moving blades with low clearance to avoid fiber tangling, ensuring stable operation.
Applications
Ideal for agriculture, edible mushroom cultivation, and wood processing industries. Commonly used in mushroom substrate processing lines to prepare raw materials for bagging.
Customization
We offer customization options for specific requirements, including different power options (diesel engine), and can also modify the particle size according to your substrate needs. Contact us for a tailored solution.
Case Study
Our mushroom substrate processing production line has been exported to South Korea, Malaysia, Russia, and the UK, with an annual export volume of over 20 units. The equipment operates stably, achieving a bagging speed of over 1000 bags per hour, helping clients reduce labor costs and improve efficiency.
FAQ
What materials can the MF-50 shred?
The MF-50 is suitable for tree branches up to 30mm diameter, cotton material, and wood. It is specifically designed for mushroom substrate preparation.
What is the output particle size?
The machine produces 3-5mm flake particles, which are ideal for mushroom substrate.
What is the capacity?
The MF-50 has a capacity of 2500kg/h (2.5 tons per hour).
What power source is required?
The standard version uses a 5.5kW electric motor with AC380V 50Hz input. A diesel engine option is available for areas without stable power.
How does the knife wheel design help?
The fixed and moving blades with low clearance prevent fiber tangling, reducing downtime and maintenance.
What are the dimensions and weight?
The overall dimensions are 1300 × 620 × 700mm and the net weight is 190kg, making it compact and easy to install.
Is the machine CE certified?
Yes, it is CE certified under certificate number M.2026.206.C135928.
Inquiry Information
For pricing, MOQ, and delivery information, please contact us:
Email: nhchangxing@outlook.com
Tel/WhatsApp: +86 13103721233
Address: Henan Neihuang, China
MOQ: 1 unit
Delivery: FOB/CIF
Payment: 30%/70%
Product Image
Filename and Alt Suggestions

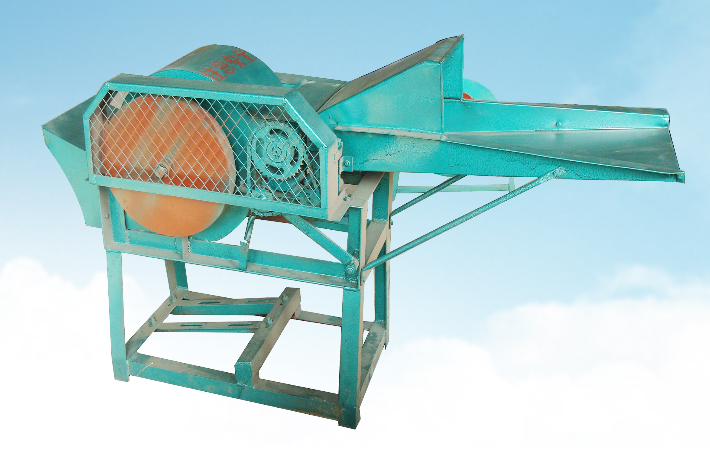

Image Filename: electric-knife-wheel-branch-cotton-shredder-mf-50.png
